Application

This Walk in Explosion-proof Chamber is mainly used to test the safety performance of lithium ion battery, battery pack. Prevent test operators and other test equipment from being burned and exploding. At the same time, the explosion-proof test chamber with the smoke exhaust system can discharge the smoke generated in the test to the outside.

Features

Integral construction with many auxiliary functions: Lighting, smoke exhaust, fire extinguishing, explosion-proof pressure relief device, etc.The inner chamber is composed of high temperature resistant and flame retardant components. The chamber door is sealed with high temperature resistant sealing strip.Integrated internal construction, no holes nor gap inside the chamber, easier to clean.

Standards

UL 2580IEC 62619

Technical Parameters

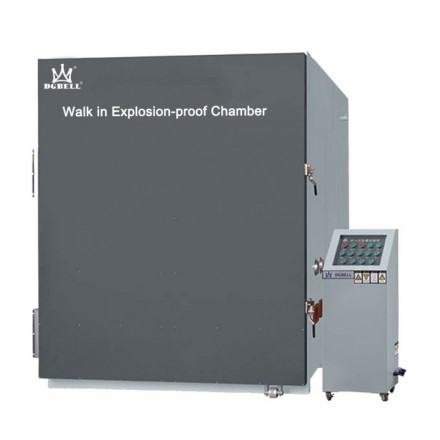

Product Name	Walk in Explosion-proof Chamber
Model	BE-8214
Interior Dimension	W2000 X D3000 X H2000 MM
Internal Material	45# die steel with spray coating
Internal chamber thickness	10mm
Overall Dimension	W2300 X D3500 X H2600 MM
External chamber thickness	10mm
Door Operation Mode	Hydraulic
Air Output	45m3/min
Total Weight	Approx 8 Tons
Power Source	AC 380V, 5.5KW
Other Function	Explosion proof pressure relief system Smoke exhaust system Sprinkler fire-extinguishing system video monitoring system Drainage system.
