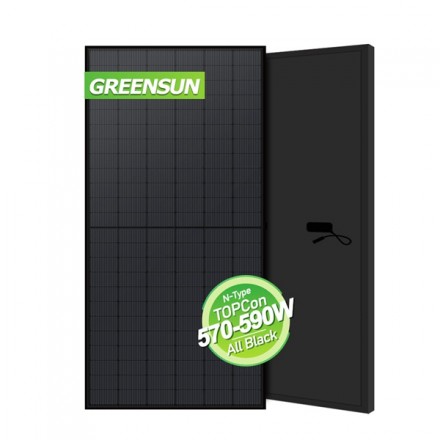

TOPCon Full Black 570W 575W 580W 590W 600W N-Type Solar Panels Mono with IEC TUV
Specification of TOPCon Half Cut Solar Panel Monocrystalline
N-Type TOPCon Bifacial Mono Solar Panels Datasheet
| Model | TOPCon 575W | TOPCon 580W | TOPCon 585W | TOPCon 590W |
| Maximum Power[Pmax] | 575W | 580W | 585W | 590W |
| Maximum Power Voltage(Vmp) [V] | 42.22 | 42.37 | 42.52 | 42.67 |
| Open Circuit Voltage[Voc] | 50.88 | 51.02 | 51.16 | 51.30 |
| Short Circuit Current(Isc) [A] | 14.25 | 14.31 | 14.37 | 14.43 |
| Maximum Power Current(Imp) [A] | 14.39 | 14.47 | 14.55 | 14.63 |
| Module Efficiency [%] | 22.25% | 22.44% | 22.64% | 22.84% |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.048%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.280%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/℃ | |||
| Package | 36 units per pallets, 720 units per container | |||
| Size | 2279*1134*30mm | |||
| Weight | 32.0kg | |||
