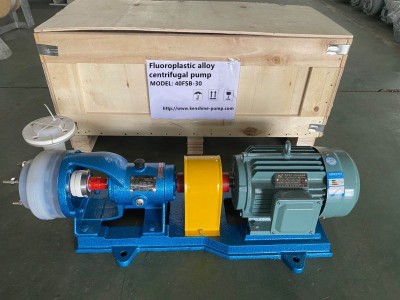

Single stage single suction Cantilever centrifugal pump

The flow components are all made of fluoroplastic, and the pump body is lined with polytetrafluoroethylene propylene (F46)，Equipped with WB2 series external mounted PTFE corrugated pipe mechanical seal. The pump has the advantages of strong corrosion resistance, with high mechanical strength, non- aging, and no toxin decomposition.

FSB fluorine plastic pump is mainly suitable for transporting acids, alkalis, salts, strong oxidizing agents, and other corrosive media with any concentration for a long time,

Application:

The pump is widely used in industries such as petroleum, chemical, pharmaceutical, pesticide, pickling, dyes, paint, smelting, papermaking, electroplating, food, etc

1. Acid resistant type: suitable for conveying various strong acids or mixtures of acids and solvents.

2. Alkali resistant type: suitable for conveying alkaline clear liquids or mixtures of alkaline liquids and solvents.

3. Explosion proof type: suitable for conveying flammable and explosive liquids, equipped with explosion-proof motors.

FSB-D type: Closed couple & FSB-L type: shaft coupling type
