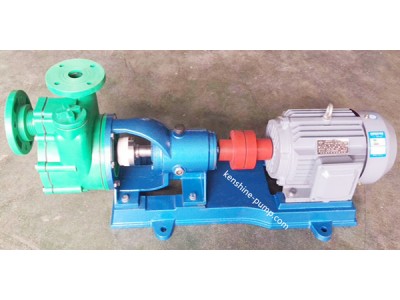

FP reinforced polypropylene anti-corrosive centrifugal pump uses a high-quality reinforced polypropylene (RPP) injection molding with high mechanical strength, good corrosion resistance, (the medium does not contact with the metal), with corrosion resistance, wear resistance, with high quality silicon carbide mechanical seal, without cooling water cooling, high efficiency, low price etc.

Better corrosion resistance than metal pump

FP reinforced polypropylene plastic centrifugal pump is used to replace stainless steel pump and fluorine alloy pump and the other non-metallic pump.

Pumped fluids:

FP reinforced polypropylene anticorrosion centrifugal plastic pump is widely used to transport a large number of inorganic and organic acids, alkali, salt solutions and their derivatives. The pump can operate reliably in the range of -20 to 80DegC. The model 80FPD-32 (100FPD-32) is the best matching pump for the RPP-65 (RPP-80) series water jet vacuum pump.

Application:

FP Series reinforced polypropylene centrifugal pump is with mechanical seal. The pump is made from CFR-PP (reinforced polypropylene) material on the advanced domestic and oversea technology. The pump has the advantages of advanced structure, light weight, small volume and long life etc and widely used to transfer the acid and alkali ad salts etc corrosive liquids in the chemical industry, foodstuff, brewage, pharmacy, electroplate, papermaking, environmental protection, water treatment etc.

Performance Range:

Flow: 1 to 100m3/h

Head: 5 to 50m

Pump material: RPP

Pump caliber: 15mm-100mm

Model explanation:

50FPD-30

50: Pump inlet (50mm)

FP: polypropylene plastic pump

D: Closed coupling

30: lift head (30m)
