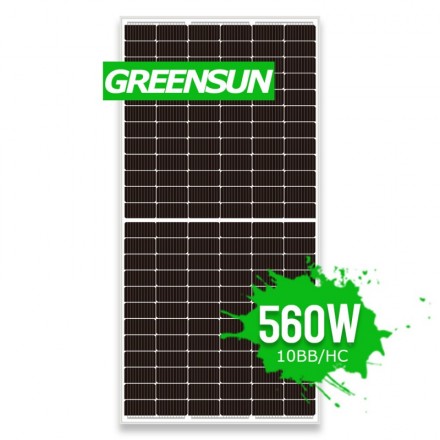

182mm Mono 540w 550w 560w 600w Solar Panels 144cells 72cell Monocrystalline

Price: Negotiable
Min.Order: 1
Supply 928
Delivery: Shipment within 1 days since the date of payment
Address:
Valid until: Never Expire
Updated on: 2024-01-08 15:22
Views: 797

Changjiang West Road, Shushan District, Hefei, China

182mm Mono 540w 550w 560w 600w Solar Panels 144cells 72cell Monocrystalline


Specification of 182*182mm Half Cut Solar Panel 144cells Monocrystalline



PV Module
GSM545-144
GSM550-144
GSM555-144
GSM560-144
Rated Maximum Power(Pmax) [W]
545

550

555
560
Open Circuit Voltage(Voc) [V]
49.67
49.80
49.93
50.06
Maximum Power Voltage(Vmp) [V]
41.15
51.28
41.41 41.54
Short Circuit Current(Isc) [A]
13.93
14.01
14.09
14.17
Maximum Power Current(Imp) [A]
13.24
13.32
13.40
13.48
Module Efficiency [%]
21.2
21.4
21.6
21.8
Power Tolerance
0~+5W
Temperature Coefficient of Isc(α_Isc)
+0.048%/℃
Temperature Coefficient of Voc(β_Voc)
-0.270%/℃
Temperature Coefficient of Pmax(γ_Pmp)
-0.350%/℃
STC
Irradiance 800W/m²,Ambient Temperatire 20
Size
2276*1133*35mm
Weight
29.4kg
