| Price: | Negotiable |
| Min.Order: | 1 |
| Supply | 364 |
| Delivery: | Shipment within 1 days since the date of payment |
| Address: | |
| Valid until: | Never Expire |
| Updated on: | 2024-01-08 15:22 |
| Views: | 164 |
Changjiang West Road, Shushan District, Hefei, China

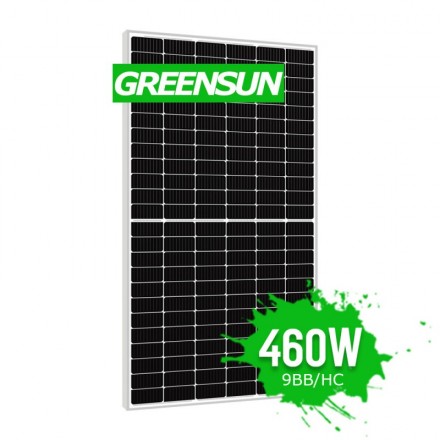

440w 450w 460w 470w 480w Half Cut Half Cells Monocrystalline 440Watt 450Watt 460Watt Solar Panel
Specification of 182*182mm Half Cut Solar Panel 120cells Monocrystalline
| PV Module | GSM440-120 | GSM450-120 | GSM460-120 | GSM470-120 |
| Rated Maximum Power(Pmax) [W] | 440 | 450 | 460 | 470 |
| Open Circuit Voltage(Voc) [V] | 41.44 | 41.56 | 41.68 | 41.80 |
| Maximum Power Voltage(Vmp) [V] | 34.21 | 34.31 | 34.41 | 34.50 |
| Short Circuit Current(Isc) [A] | 13.55 | 13.81 | 14.09 | 14.37 |
| Maximum Power Current(Imp) [A] | 12.87 | 13.12 | 13.38 | 13.64 |
| Module Efficiency [%] | 20.4 | 20.8 | 21.2 | 21.6 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.048%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.270%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/℃ | |||
| STC | Irradiance 800W/m², Ambient temperature 20℃ | |||
| Size | 1908*1134*35mm | |||
| Weight | 24kg | |||
