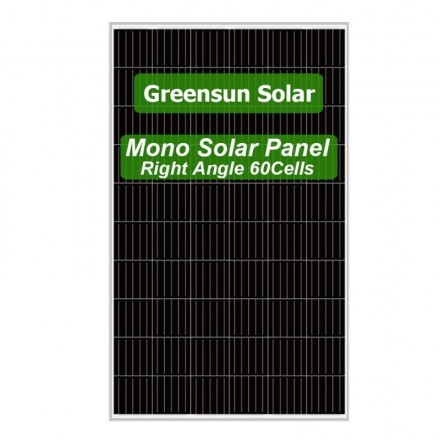

158mm x 158mm Mono Solar Panel 60cells 320watt 330watt 340watt PERC PV Modules
Specification of Full Square Mono 60cells Solar Panel
| PV Module | GSM320-60 | GSM330-60 | GSM335-60 | GSM340-60 |
| Rated Maximum Power(Pmax) [W] | 320 | 330 | 335 | 340 |
| Open Circuit Voltage(Voc) [V] | 41.12 | 38.38 | 41.62 | 41.78 |
| Maximum Power Voltage(Vmp) [V] | 33.96 | 34.32 | 34.48 | 34.67 |
| Short Circuit Current(Isc) [A] | 9.98 | 10.23 | 10.34 | 10.48 |
| Maximum Power Current(Imp) [A] | 9.42 | 9.63 | 9.72 | 9.81 |
| Module Efficiency [%] | 19.18 | 19.78 | 20.08 | 20.38 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | |||
| STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | |||
| Size | 1665*1002*35mm | |||
| Weight | 18.5kg | |||
