| Price: | Negotiable |
| Min.Order: | 1 |
| Supply | 368 |
| Delivery: | Shipment within 1 days since the date of payment |
| Address: | |
| Valid until: | Never Expire |
| Updated on: | 2024-01-08 15:23 |
| Views: | 913 |
Changjiang West Road, Shushan District, Hefei, China

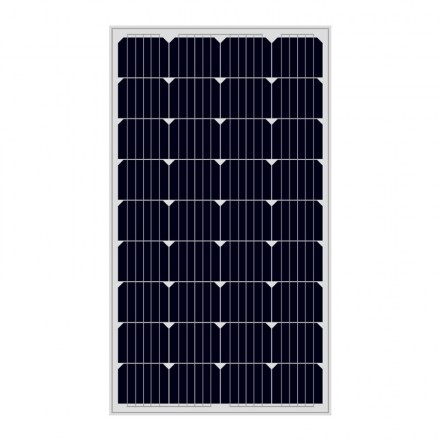

Mono 36cells 12v solar panel
Specification for 12V solar panel
| PV Module | GSM90-36 | GSM100-36 | GSM110-36 | GSM120-36 |
| Rated Maximum Power(Pmax) [W] | 90 | 100 | 110 | 120 |
| Open Circuit Voltage(Voc) [V] | 22.6 | 22.7 | 22.8 | 22.9 |
| Maximum Power Voltage(Vmp) [V] | 18.4 | 18.5 | 18.6 | 18.7 |
| Short Circuit Current(Isc) [A] | 5.28 | 5.87 | 6.39 | 6.97 |
| Maximum Power Current(Imp) [A] | 4.89 | 5.43 | 5.91 | 6.45 |
| Module Efficiency [%] | 17.4 | 17.7 | 18.0 | 18.3 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | |||
| STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | |||
| Size | 1640*990*35/40mm | |||
| Weight | 7.5KG | |||
