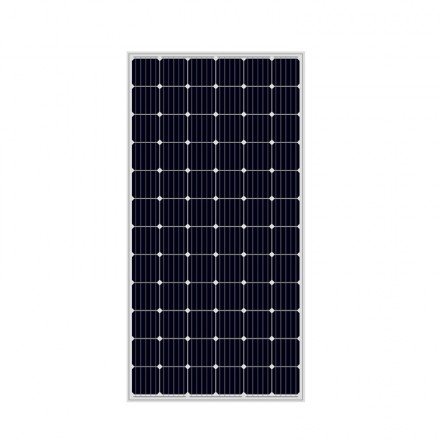

156*156mm solar cells mono 350w solar panel
Specification for 156*156mm solar cells mono 350w solar panel
| PV Module | GSM345-72 | GSM350-72 | GSM355-72 | GSM360-72 |
| Rated Maximum Power(Pmax) [W] | 345 | 350 | 355 | 360 |
| Open Circuit Voltage(Voc) [V] | 47.03 | 47.24 | 47.45 | 47.66 |
| Maximum Power Voltage(Vmp) [V] | 38.42 | 38.58 | 38.76 | 38.96 |
| Short Circuit Current(Isc) [A] | 9.53 | 9.61 | 9.69 | 9.81 |
| Maximum Power Current(Imp) [A] | 8.99 | 9.07 | 9.16 | 9.24 |
| Module Efficiency [%] | 17.7 | 18 | 18.3 | 18.5 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | |||
| STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | |||
| Size | 1960*990*40/45mm | |||
| Weight | 22.5kg(49.6lb) | |||
