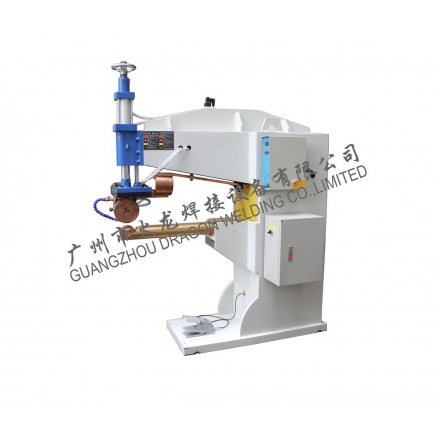

FN Series Longitudinal Seam Welding Machine

Price: Negotiable
Min.Order: 1
Supply 940
Delivery: Shipment within 1 days since the date of payment
Address: China Guangdong
Valid until: Never Expire
Updated on: 2024-07-01 14:30
Views: 433

Kaili Industrial Zone,No.389, Guangzhu Road, Dagang Street, Nansha


FN-100 Pneumatic AC Rolling Seam Welding Machine -Longitudinal Seam WeldingMachine

Main Features

1.There aretwo standard Types: Transversal Seam WeldingMachineand Longitudinal Seam Welding Machine;

2.Also one machine can be used as both transversal seam welding and longitudinalseamwelding,only need to change the direction of upper welding wheeland the lower weldinghead and change the welding arm;

3.Welding wheel adopt three-phase infinitely adjustable-speed drives,convenient to welding speed adjusting,the two welding wheels have the same tangential speed;

4.Adopt adjustable stroke cylinder,to avoid collision damage between upper and lower welding wheel;

5.Driven one head and free the other head;

6.Widely used in hardware, appliances,automotive,manufacturing pots, can,fuel tank, tank producing and other metal manufacturing and processing industries.

Main Technical Parameters

Item


Model

Rated
Capacity

Rated
Primary
Voltage

Rated
Frequency

Maximum
Short
Current

Electrode
Stroke

Welding
Speed

Electrode
Pressure

Motor
Power
Source

Motor
Power

Cooling
Water Flow

Weight

KVA

V

Hz

A

mm

M/min

KN

V

W

L/min

Kg

FN-50

50

380

50/60

15000

50

0.6-2

2.5

3-380V

90

30

500

FN-75

75

380

50/60

18000

50

0.6-2

3.9

3-380V

150

30

650

FN-100

100

380

50/60

20000

50

0.6-2

4.7

3-380V

150

30

880

FN-150

150

380

50/60

26000

50

0.6-2

6.1

3-380V

150

40

1050

FN-200

200

380

50/60

31000

50

0.6-2

6.1

3-380V

150

40

1250

Welding Samples:
