Automatic Nuts feeder

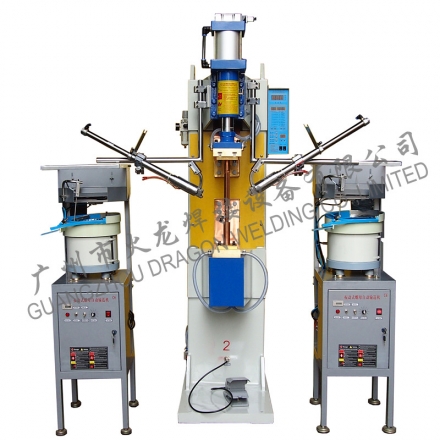

Automatic Nuts Welding Machine
I.Main Features
１ Increase production efficiency. Filtrate the nut and feed the nut to the proper position automatically. The feeding speed can reach to 35 ~ 50 pcs/min and the feeding accuracy achieve over 99%.
２ Can directly connect to variousimmobile spot welding machine and successively feed nut. Accomplish the whole process from filtrating, feeding and welding nut automatically.
３ We correspond various shapes of nuts from sizes Ｍ４～Ｍ１２.
II. Nuts Feeder Specifications
Power Voltage AC220V
Power Freq. 50/60HZ
Air pressure 0.4 ~ 0.7Mpa
Nut Feed Ability 30~50 Pcs / Min
Feed Distance 200mm
Available Nut M5-M12
Machine Color Green
Nut Capacity about 2000 pcs.
Total Weight 40Kg
Note:
1. The radius tolerance of nut must be under 0.2mm
2. The plane tolerance of nut must be under 0.2mm
3. The size tolerance of nut must be under 0.2mm
III.Welding Machine Main Technical Parameters
| Rated | Rated | Rated | Max. | Rated | Arm | Max. | Electrode | Cooling | Weight | Electrode size | ||
Electrode | Electrode holding rod | Electrode arm | |||||||||||
KVA | V | Hz | A | % | mm | N | mm | L/min | Kg | (mm) | (mm) | (mm) | |
DN-25 | 25 | 380 | 50/60 | 17500 | 50 | 380 | 2500 | 60 | 6 | 300 | 16 | 20 | 45*200 |
DN-35 | 35 | 380 | 50/60 | 18500 | 50 | 380 | 4000 | 60 | 6 | 380 | 16 | 25 | 50*200 |
DN-50 | 50 | 380 | 50/60 | 20000 | 50 | 380 | 4000 | 60 | 6 | 430 | 16 | 25 | 50*200 |
DN-75 | 75 | 380 | 50/60 | 25000 | 50 | 380 | 6280 | 60 | 8 | 500 | 16 | 25 | 60*200 |
DN-100 | 100 | 380 | 50/60 | 30500 | 50 | 380 | 6280 | 60 | 8 | 600 | 16 | 25 | 60*200 |
DN-150 | 150 | 380 | 50/60 | 38500 | 50 | 380 | 9800 | 60 | 12 | 750 | 20 | 30 | 80*250 |
DN-200 | 200 | 380 | 50/60 | 43000 | 50 | 380 | 9800 | 60 | 12 | 800 | 20 | 30 | 80*250 |
