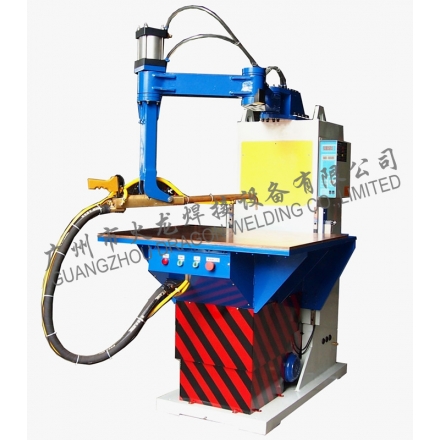

DNT Series Rocker Arm Table Spot Welding Machine
Main Feathers and Applications
1.There are two types of Welding Power Source : AC Spot Welding or Medium Frequency inverter DC spot welding;
2.The lower welding electrode is designed level flat table:Welding range increased,the welded workpiece stays very flat,not deformed,no mark and smooth under welding point;
3.The up welding electrode is designed as Multi-joint arm, welding easily, without moving work piece, only move the welding gun, can weld any position in the range of the down flat table;
4.At the same time in the 200mm range the lower welding flat table can go up and down freely, by this way it is suitable for welding various shape and size of products;
5.Welding Gun can be made in two types: Vertical Welding or Horizontal Welding,choosed according to different workpiece,More easily operating and freely, safe and reliable.
Main Technical Parameters:
Rated Capacity: 50KVA~200KVA,
Input Voltage:220V/380V~480VAC(Optional), 50Hz/60Hz
Air Source Pressure: =0.5Mpa;
Electrode Force: =2.2KN
Welding Table Size:800mm(W) ×1000mm(L);
Welding Table Height: 750~950mm (200mm Stroke);
Welding Gun Type: Horizontal Gun or Vertical Gun
(Optional);
Welding Gun Length: 395mm;
Machine Size : L:1580mm×W:1000mm×H:1900mm;
Machine Weight: 850kg
