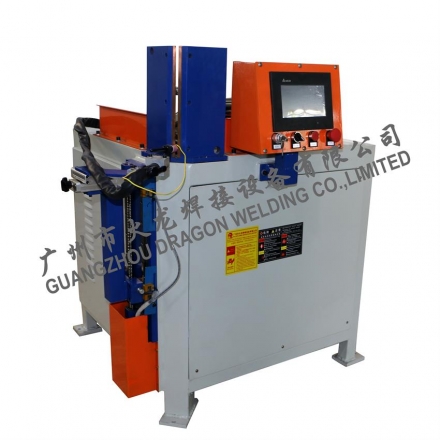

CornerSeam Welding Machine
Machine features:
1. Corner seam welding machine is mainly used in stainless steel, iron, aluminum, brass and other metal cylinders, high quality and low deformation linear automatic welding.
2. Corner seam welding machine adopts the key copper alloy compaction mechanism to provide uniform and stable workpiece clamping and cooling effect.
3. It is equipped with a backside protective bushing and forming groove to guarantee the stable gas protection and the perfect effect of ensuring the single side welding double side molding;
4. The machine can be integrated with PLC or relay as required;
5. The welding gun is driven by dc motor, and the welding speed is adjustable.
6. Cornerseam welding machine can match any type of arc welding power supply (argon arc welding/CO2 welding/plasma arc welding).
Main Parameter Datas:
Model ZFR-100 ZFR-200 ZFR-300 ZFR-500 ZFR-800 ZFR-1000 Input voltage Single Phase 220V, 50/60Hz Max welding height(mm) 100mm 500mm 300mm 500mm 800mm 1000mm Workpiece Requests(mm) The bended Corner must be good, no gap,no burrs Workpiece thickness(mm) 1-3mm Welding Speed 300-2000mm/min
Welding Samples:
