Performance Range
Max. Flow: 7.2m3/h
Max. Head: 169m
Application Limits Max. ambient temperature < 40℃; Sand co
ntent (in mass fraction) up to 0.01%; Hydrogen sulfide co
ntent up to 1.5mg/L, chloride ion co
ntent up to 400mg/L; pH 6.5 to 8.5; Maximum: 70m below the static water table. Certificate

Application FieldsBuilding/co
nstruction work/domestic water supply; Irrigation and small water work; Landscaping; Water co
nservancy system; Factory.Features Edible oil filled motor, stable & reliable running with pressure regulating membrane; Single phase motor with built in B Grade oil proofed capacitor &thermal mode protector; Available with cable with a motor plug, disassemble conveniently; Available with pump casing with plug, integrated stage floating impellers; Installation in 3.5" or larger boreholes; Optio
nal Available On Request
NO

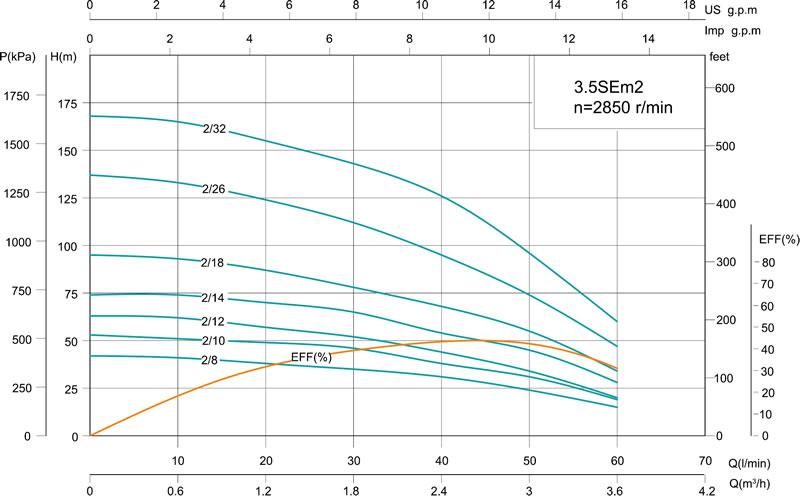

Performance Curve
