Performance Range

Max. Flow: 22m3/h
Max. Head: 480m

Application Limits Max. ambient temperature < 40℃;Sand content(in mass fraction)up to 0.01%;hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;pH 6.5 to 8.5;Maximum: 70m below the static water table. CertificateApplication FieldsBuilding/construction work/domestic water supply; Irrigation and small water work; Landscaping; Water conservancy system; Factory.Features Edible oil filled motor, stable& reliable running with pressure regulating membrane; Single phase motor with built in B Grade oil proofed capacitor &thermal mode protector; Available with cable with a motor plug, disassemble conveniently; Available with pump casing with plug, 2~8 m3/hrs series with single stage floating impellers, 10~16m3/hrs series with integrated stage floating impellers; Installation in 4" or larger boreholes; Optional Available On Request

Oil chamber is available with brass or SS304; Discharge chamber, Inlet parts are available SS304.

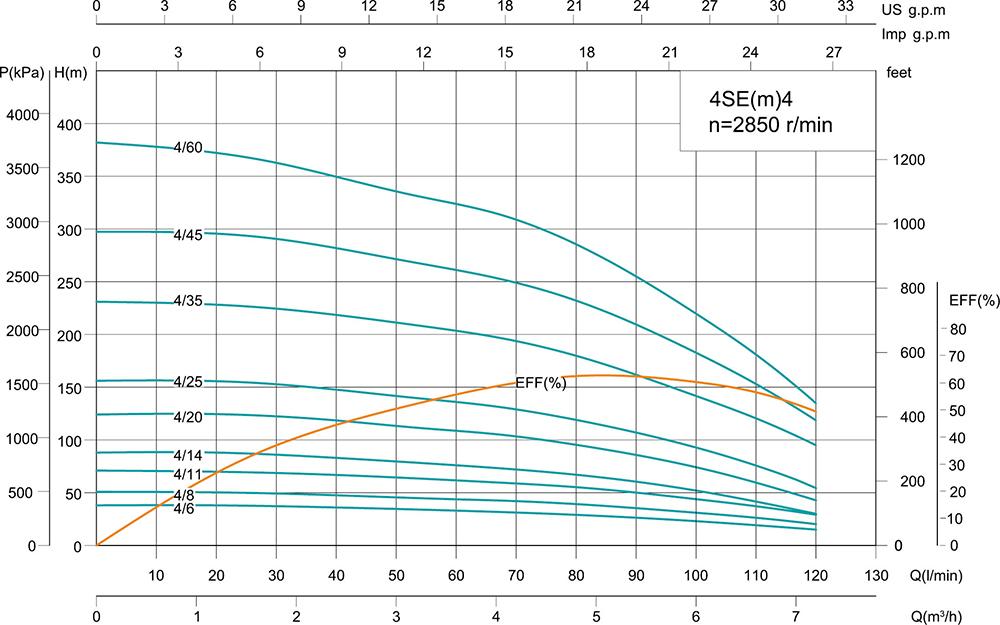

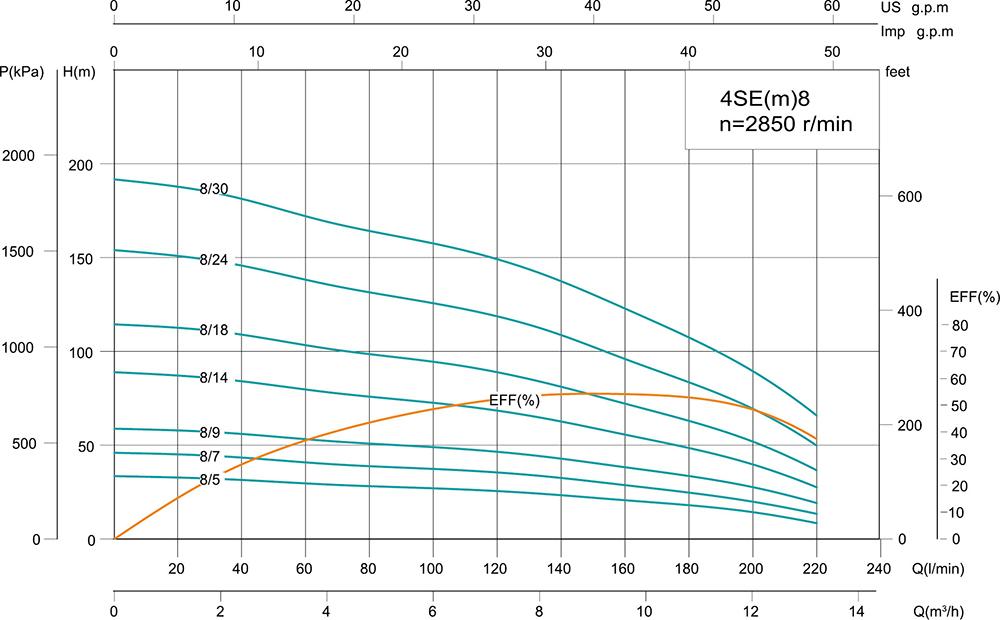

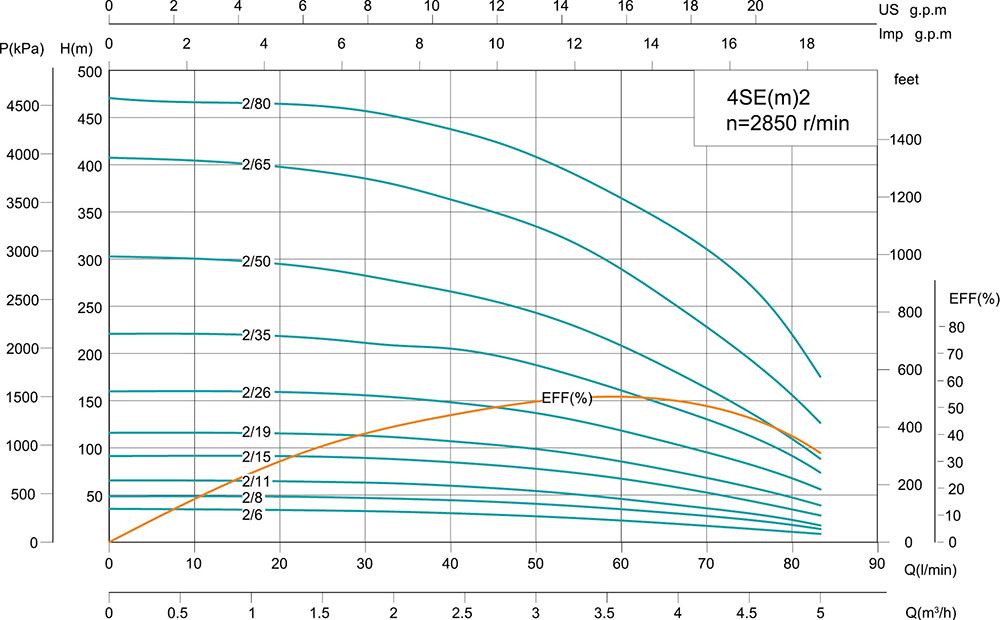

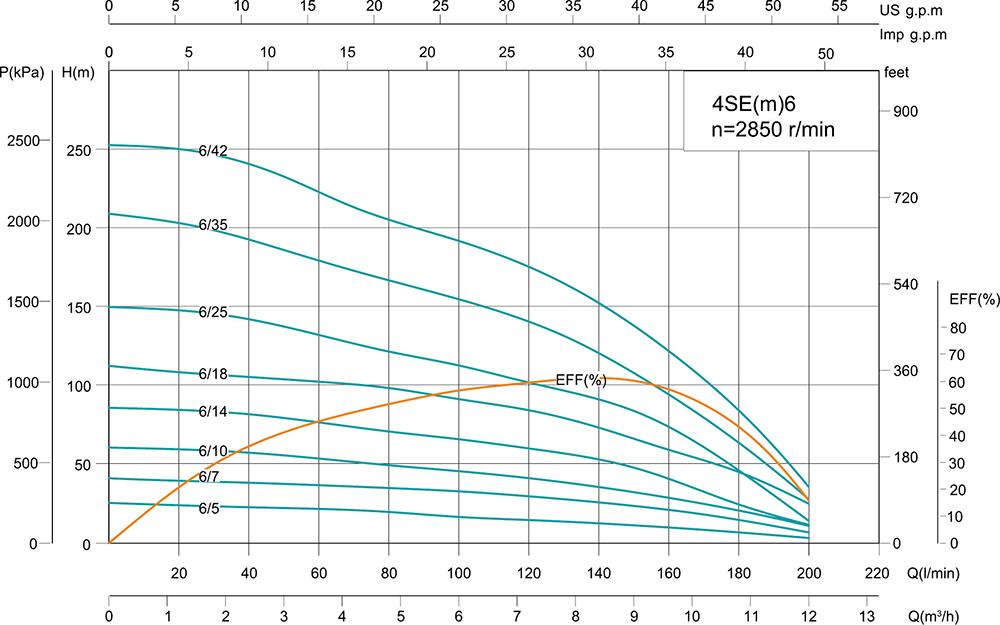

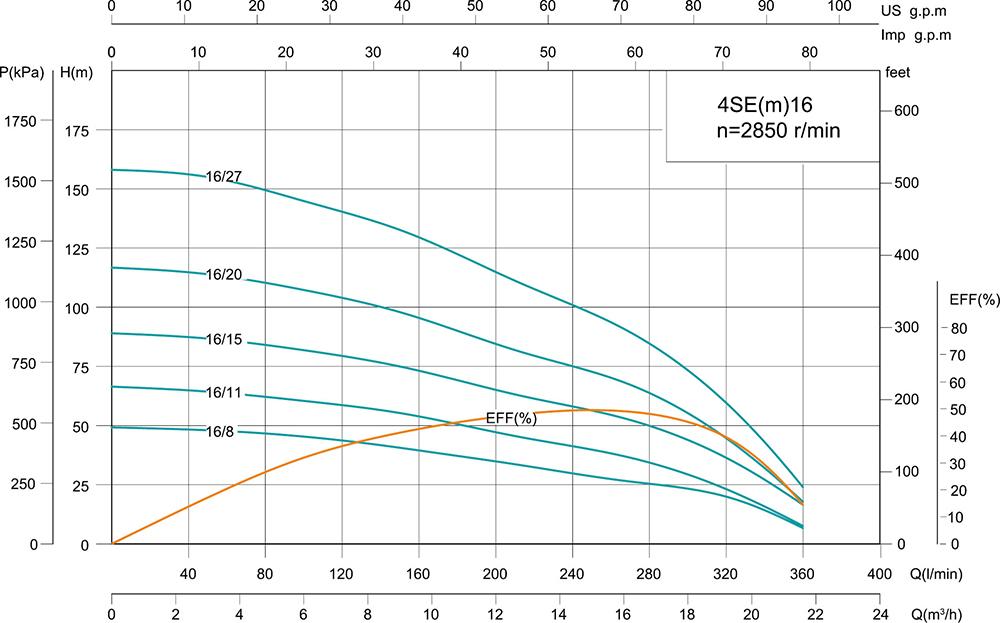

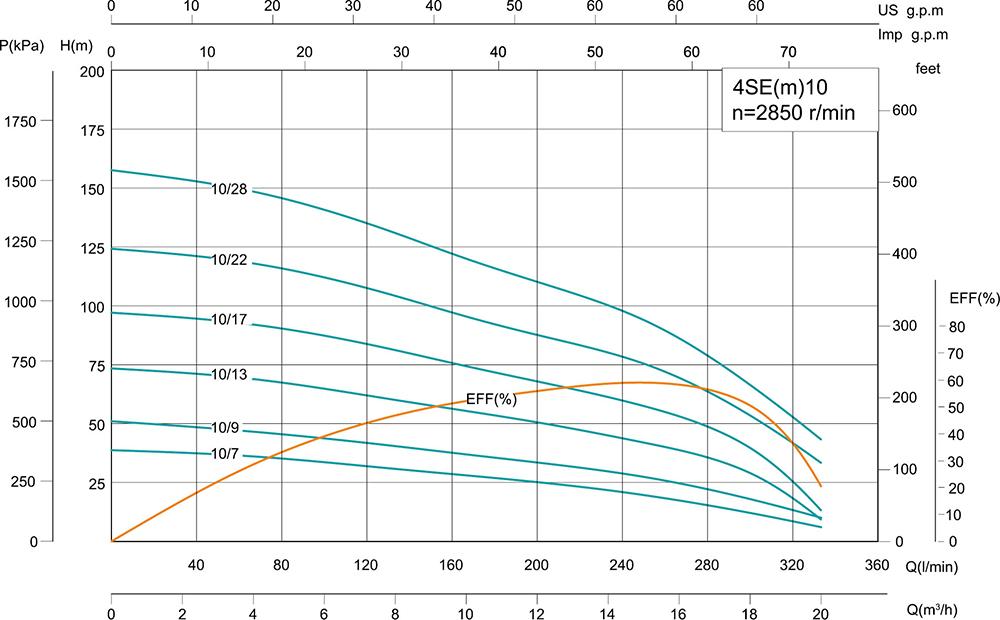

Performance Curve
