Performance Range

Max. Flow: 10.8m3/h
Max. Head: 330m

Application Limits Max. ambient temperature < 40℃;Sand content(in mass fraction)up to 0.01%;Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;pH 6.5 to 8.5;Maximum: 70m below the static water table. CertificateApplication FieldsBuilding/construction work/domestic water supply; Irrigation and small water work; Landscaping; Water conservancy system; Factory.Features Edible oil filled motor, stable& reliable running with pressure regulating membrane; Single phase motor equipped with start box which built in capacitor ¤t mode thermal protector, convenient for replacement; Available with stainless steel pump head, effective against the corrosion and abrasive wear; Installation in 4" or larger boreholes. Optional Available On Request

Pipe connection of discharge chamber is available with 1.25", 1.5", 2".

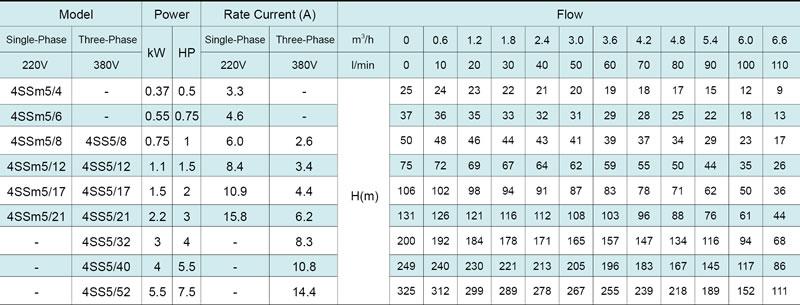

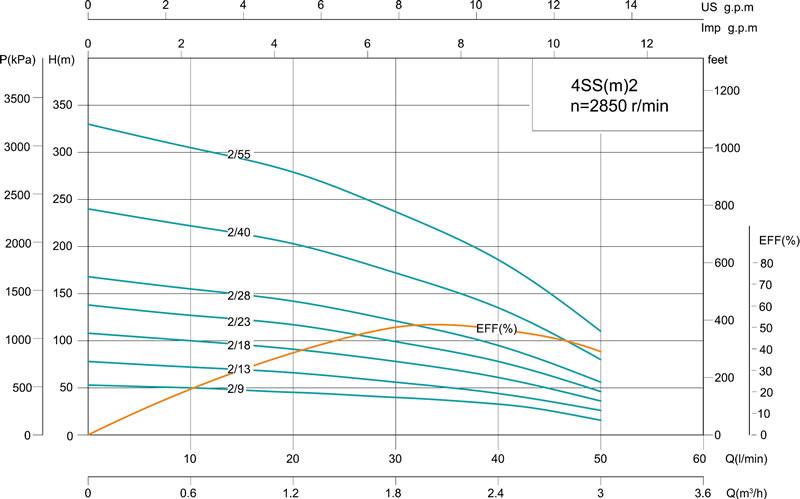

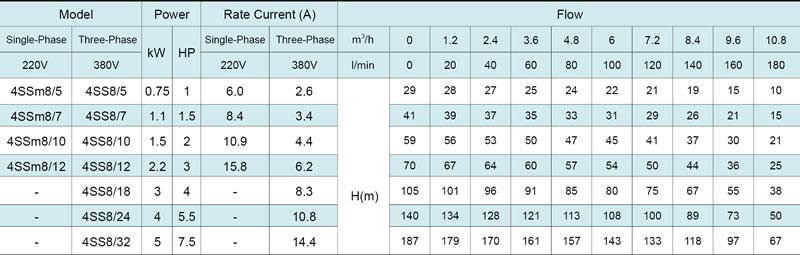

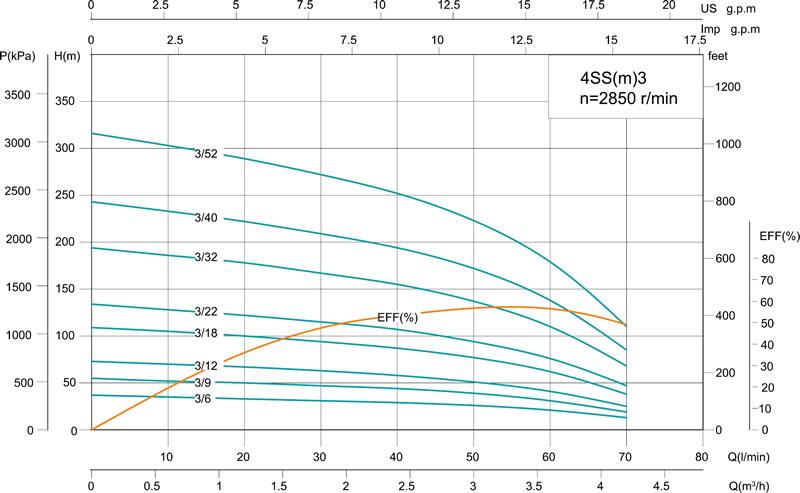

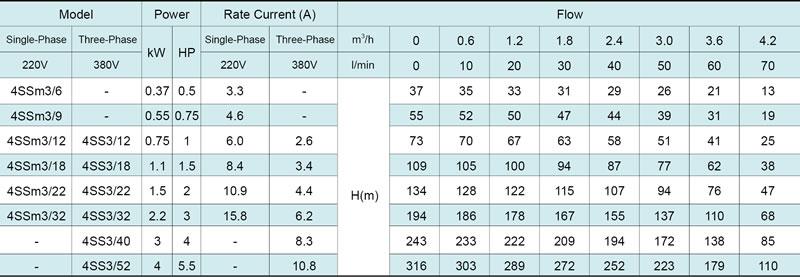

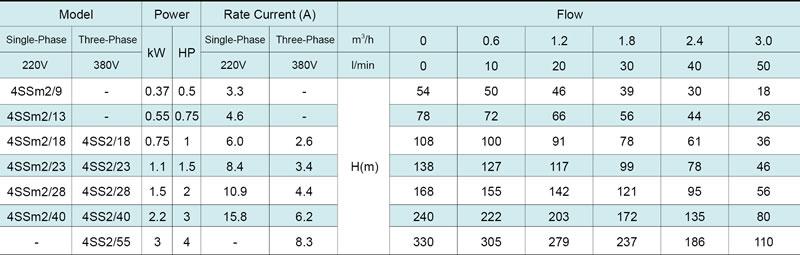

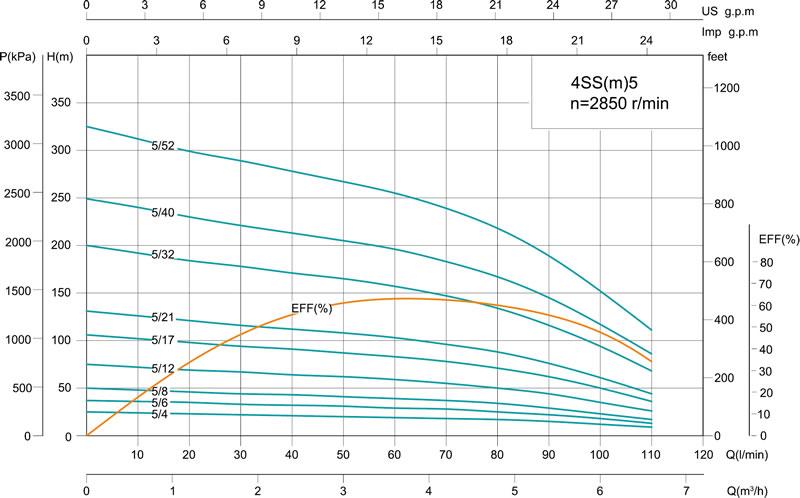

Performance Curve
