Performance Range
Max. Flow: 78m3/h
Max. Head: 283m
Application Limits Max. ambient temperature < 40℃;Sand co
ntent(in mass fraction)up to 0.01%;Hydrogen sulfide co
ntent up to 1.5mg/L, chloride ion co
ntent up to 400mg/L;pH 6.5 to 8.5;Maximum: 70m below the static water table. Certificate
Application FieldsBuilding/co
nstruction work/domestic water supply; Irrigation and small water work; Landscaping; Water co
nservancy system; Factory.Features Available with stainless steel pump head, effective against the corrosion and abrasive wear; Edible oil filled motor, stable& reliable running with pressure regulating membrane; Available with co
ntroller box, bring a
bout general protection; Installation in 6" or larger boreholes. Optio
nal Available On Request
Discharge chamber is available with 3"or 4"

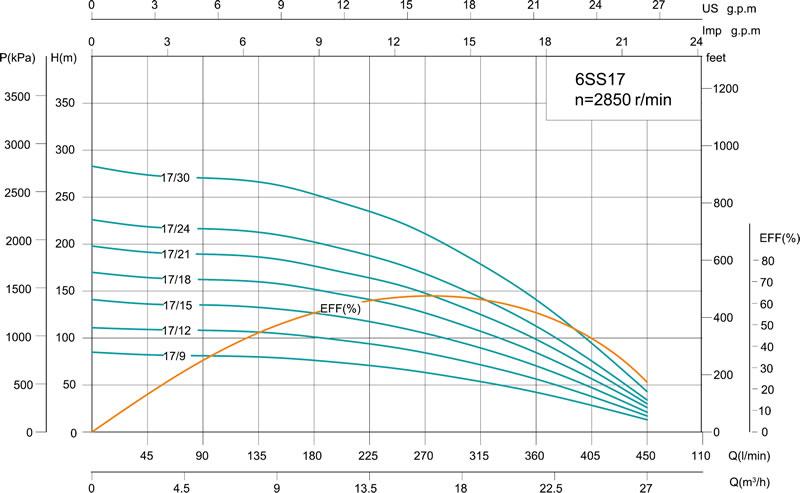

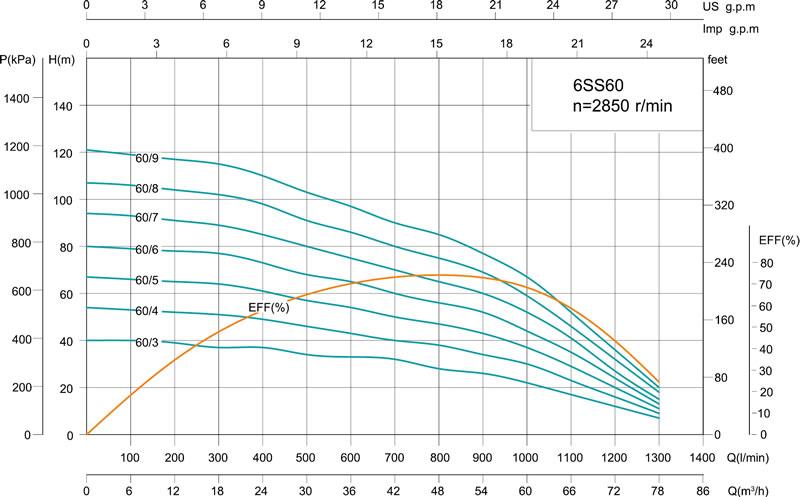

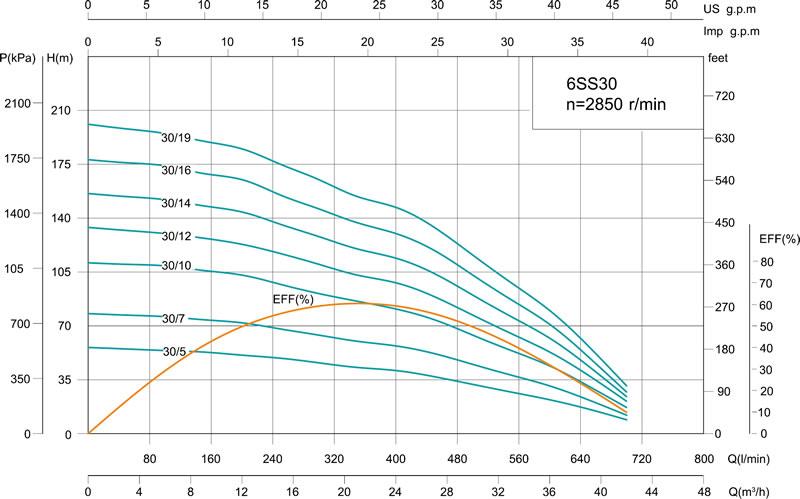

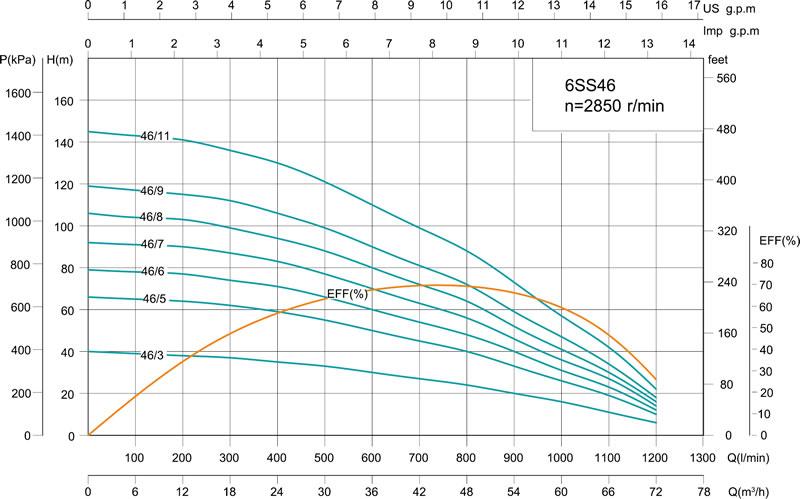

Performance Curve
