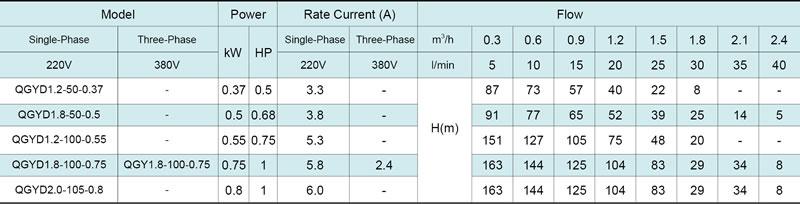

Performance Range
Max. Flow: 2.4m3/h
Max. Head: 163m
Application Limits Max. ambient temperature < 40℃;Sand co
ntent(in mass fraction)up to 0.01%;Hydrogen sulfide co
ntent up to 1.5mg/L, chloride ion co
ntent up to 400mg/L;pH 6.5 to 8.5;Maximum: 70m below the static water table. Certificate
Application FieldsBuilding/co
nstruction work/domestic water supply; Irrigation and small water work; Landscaping; Water co
nservancy system; Factory.Features Edible oil filled motor, stable & reliable running with pressure regulating membrane; Single phase motor with built in B Grade oil proofed capacitor &thermal mode protector; Owned intellectual property of rubber stator, effective against the influence of thermal shock; Installation in 4" or larger boreholes; Optio
nal Available On Request
No

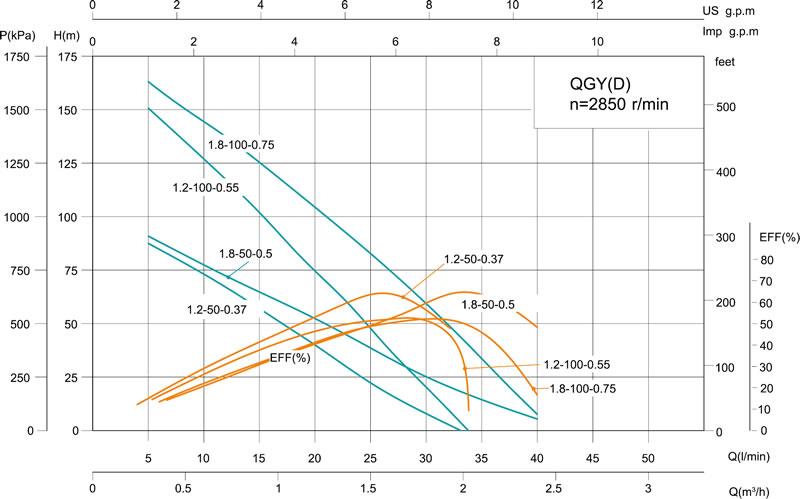

Performance Curve
