Dayangcheng Industrial Zone, Daxi Town, Wenling City, Zhejiang Province, China
Max. Flow: 3.5m3/h
Max. Head: 6m
For domestic hot water system such as mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system and family hot, cold water pressurization circulation, etc.
Certificate

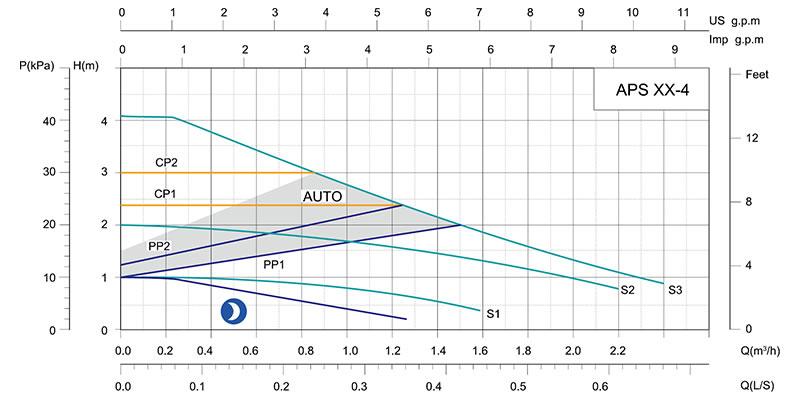

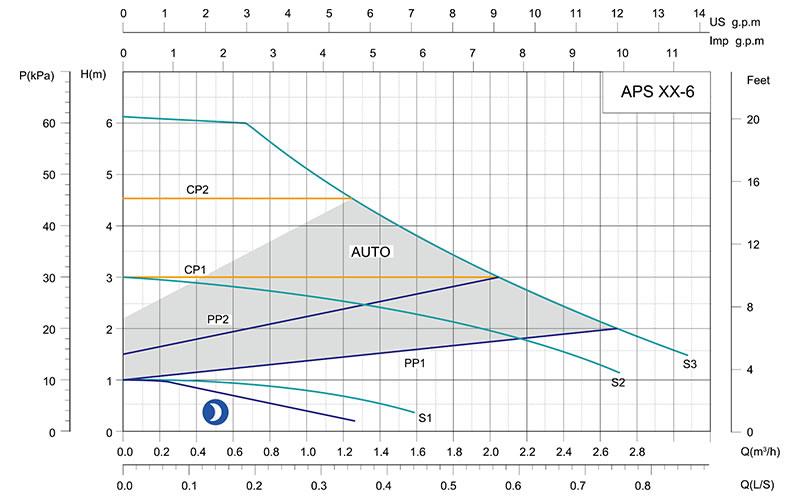

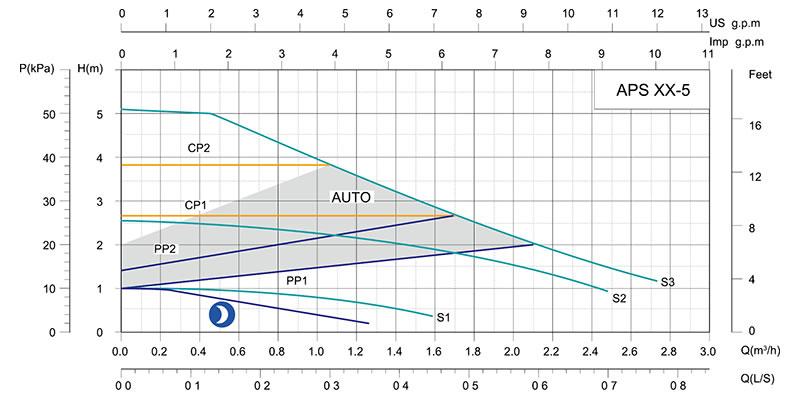

Application Limits Liquid temperature: 2℃~110℃Maximum ambient temperature +40℃Maximum system pressure 10barProtection level: IP44Mains connection: 220V 50Hz/60HzInsulation class: FPumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of waterInstallation: the motor shaft must be kept in horizontal directionpH: 6.5 to 8.5 Features "A" rated energy efficiency-lowest power consumption Permanent magnet motor-intelligent frequency conversion control Compact design, with control box integrated into the pump head Proportional pressure mode(PP) Constant pressure mode(CP) Constant speed mode(S) AUTO mode Night-setback mode Actual power display Low noise, no leakage Optional Available on Request Products can be customized according to customer's voltage and frequency Brass pump body, enamel pump body, stainless steel pump body Performance Curve
