Performance Range

Max. Flow: 2m3/h
Max. Head: 7m

Application Limits Liquid temperature: +2℃~+95℃ Maximum ambient temperature: +40℃ Maximum system pressure: 10bar Protection level: IP44 Mains connection: 220V/50Hz Insulation class: H Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water Installation: the motor shaft must be kept in horizontal direction pH: 6.5 to 8.5 Certificate Applications Fields

For gas or electric hanging furnace hot water circulation system.

Features 3-speed adjustmentLow noiseNo leakageAutomatic exhaustVarious pump body structures applied to various types of installation Optional Available on Request

Products can be customized according to customer's voltage and frequency

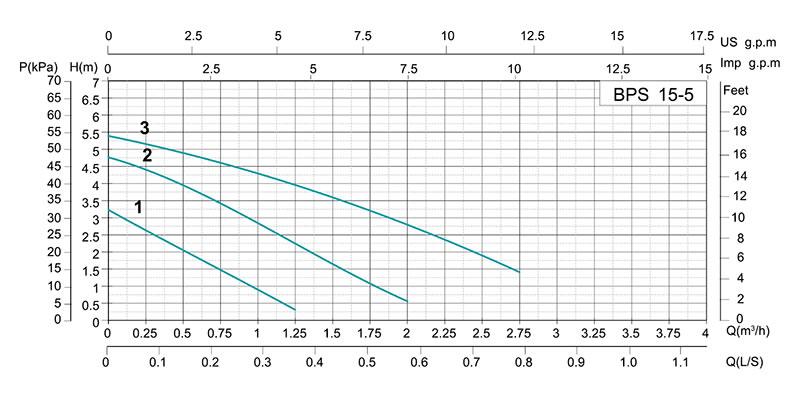

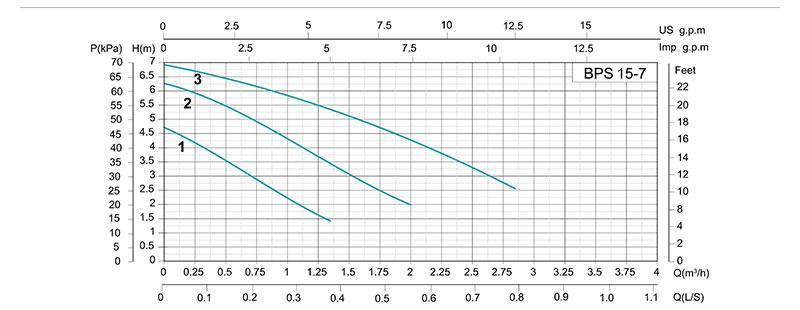

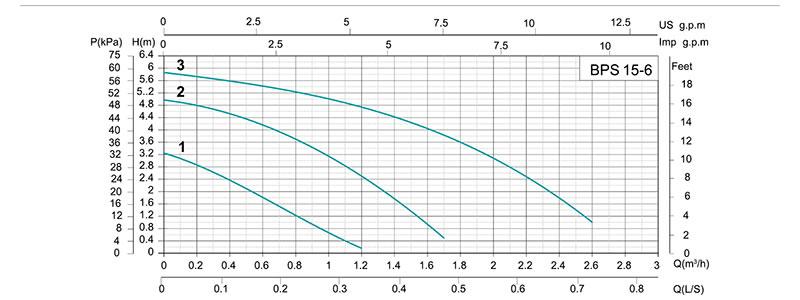

Performance Curve
