XPH Timing and Constant Temperature Circulation Pump

by Shimge Pump Industry Group Co., Ltd.,

Price:	Negotiable
Min.Order:	1
Supply	451
Delivery:	Shipment within 1 days since the date of payment
Address:	China Zhejiang
Valid until:	Never Expire
Updated on:	2024-07-01 16:42
Views:	147

Send Enquiry

Shimge Pump Industry Group Co., Ltd.,

Dayangcheng Industrial Zone, Daxi Town, Wenling City, Zhejiang Province, China

Description

Performance Range

Max. Flow: 3.5m3/h
Max. Head: 6m

Application Limits Liquid temperature: +2℃~+75℃Maximum ambient temperature: +40℃Maximum system pressure: 10barProtection level: IP44Mains connection: 220V/50Hz, 220V/60Hz, 127V/60HzInsulation class: HPumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of waterInstallation: the motor shaft must be kept in horizontal directionpH: 6.5 to 8.5 Certificate XPH Timing and Co<i></i>nstant Temperature Circulation Pump

XPH Timing and Co<i></i>nstant Temperature Circulation Pump

Applications Fields

XPH series circulating pump is specifically designed for heating systems such as mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc.

Features Low noiseNo leakageTiming operationTemperature constant operationTiming and temperature constant operation Optional Available on Request

Brass pump body, enamel pump body, stainless steel pump body

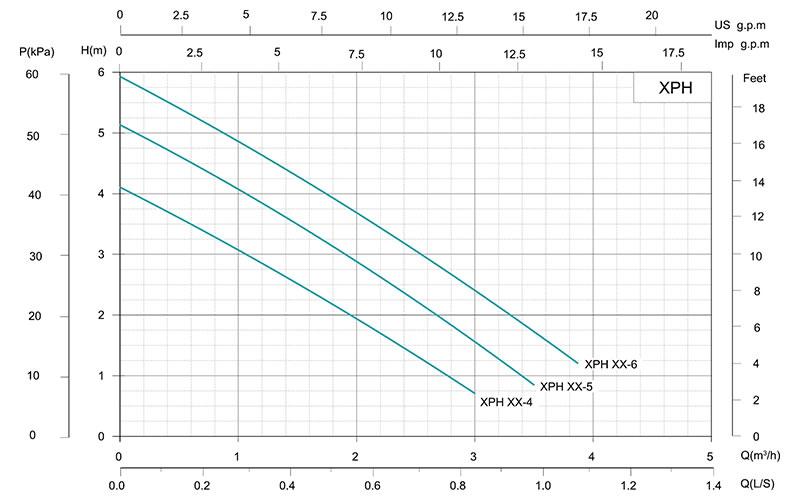

Performance Curve XPH Timing and Co<i></i>nstant Temperature Circulation Pump
