Performance Range

Max. Flow: 4.5m3/h
Max. Head: 8m

Application Limits Liquid temperature: +2℃～+110℃ Maximum ambient temperature: +40℃ Maximum system pressure: 10bar Protection level: IP44 Mains connection: 115V/60Hz Insulation class: H Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water Installation: the motor shaft must be kept in horizontal direction PH: 6.5 to 8.5 Certificate Applications Fields

XPS pumps are designed for circulation of liquids in heating and air-conditioning systems. Pumps with bronze or stainless steel housings are also suitable for use in hot-water service systems. Examples of typical applications are mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc.

Features 3-speed adjustmentLow noiseNo leakage Optional Available on Request

Enamel pump body, stainless steel pump body

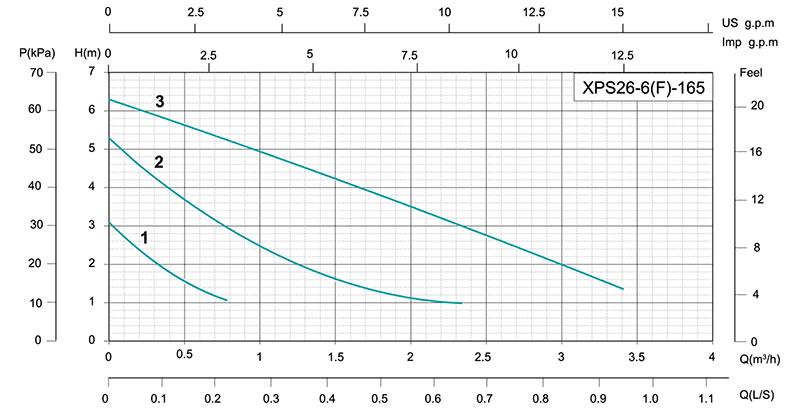

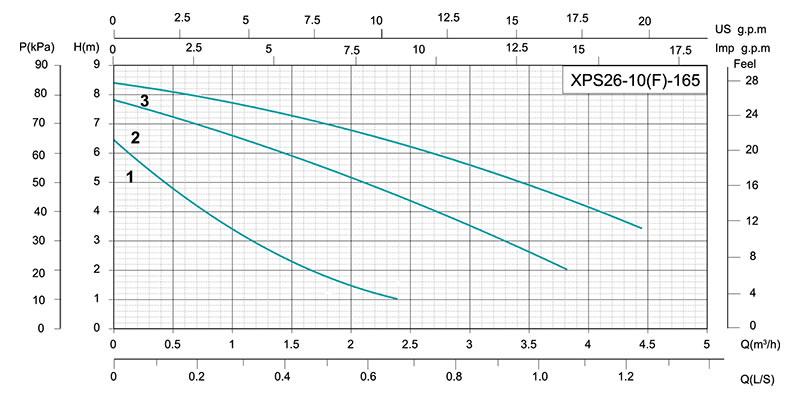

Performance Curve
