Performance Range

Max. Flow: 360m3/h
Max. Head: 190m

Application Limits Maximum liquid temperature +40℃ pH level from 6.5-8.5 Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm Power frequency is 50Hz.Nominal voltage is 380VAC for three phase with the range from -10% to 10% Immersion depth from 0.5m-5m Certificate Applications Fields

Due to multi-stage structure, QY-L1/L2 series pumps with high pressure are widely applied in many fields, such as agricultural irrigation, sprinkler irrigation, garden irrigation, water supply for wells or reservoirs, aquaculture, etc.

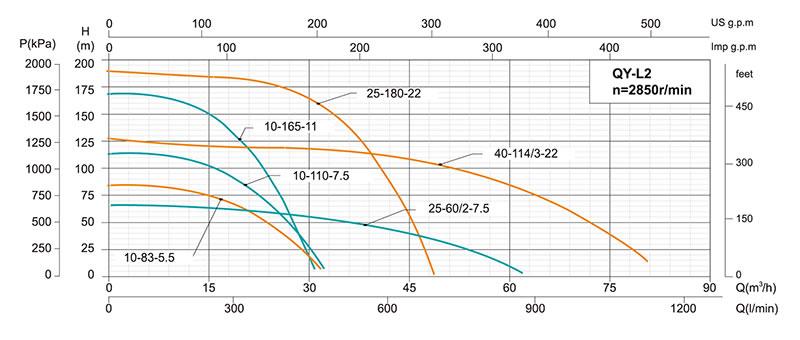

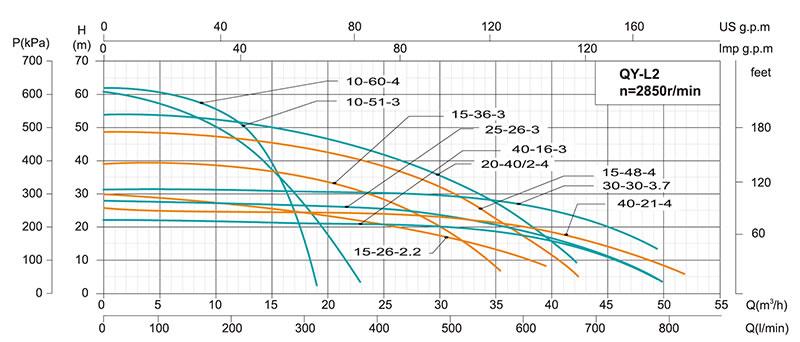

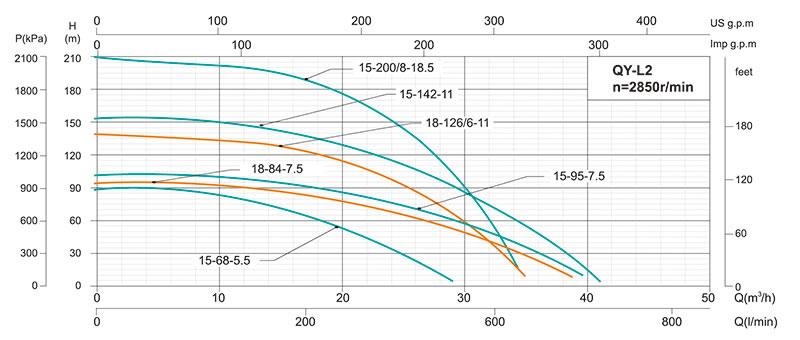

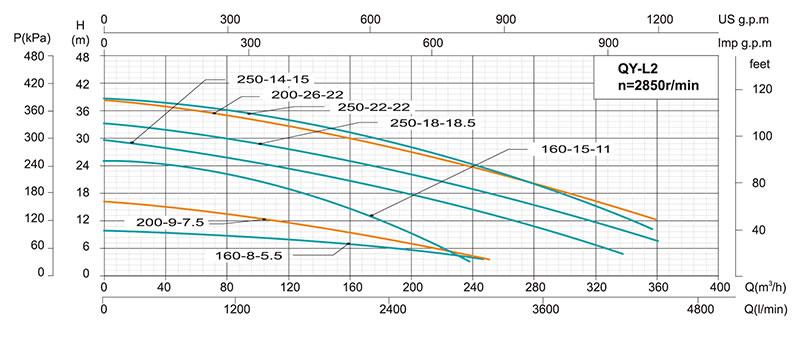

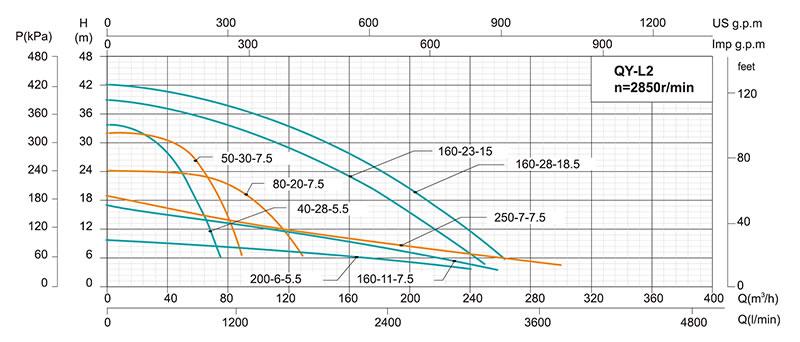

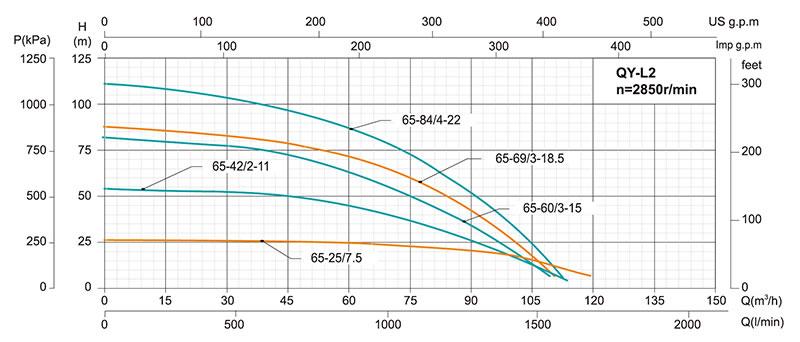

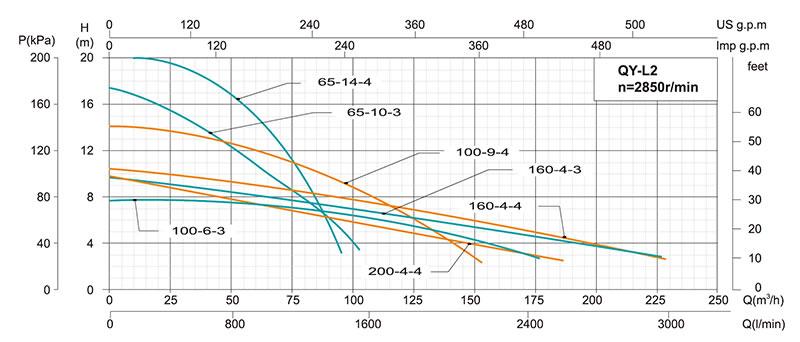

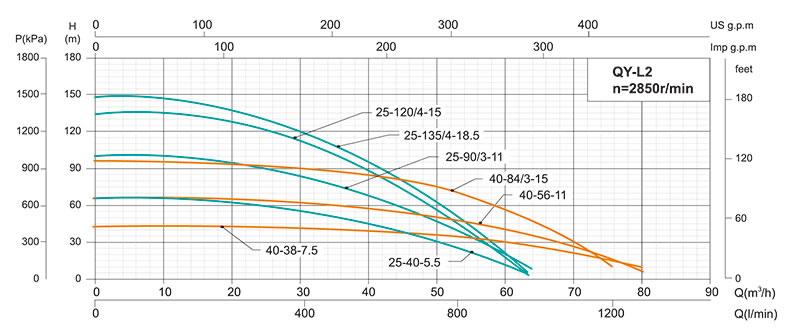

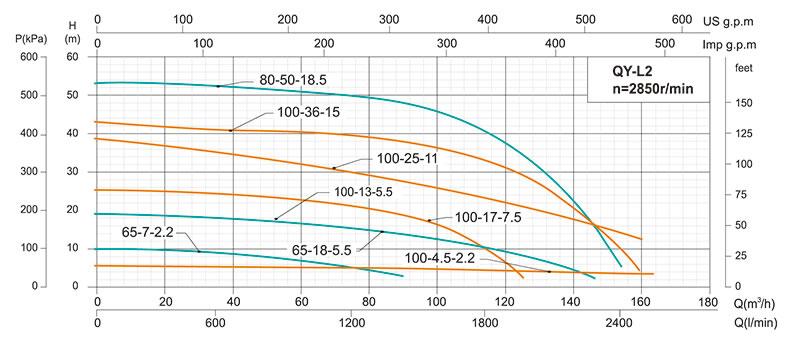

Features Wear-resistant whole cast iron parts design. Compact structure, easy to use. High quality double sides mechanical sealing to be reliable operating. Performance Curve
