Performance Range

Max. Flow: 36m3/h
Max. Head: 17m

Application Limits Maximum liquid temperature +40℃ pH level from 4-10 Maximum liquid density 1.2×103kg/m3 Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with tolerance of ±10%. Immersion depth from 0.5m-5m Certificate Applications Fields

WQ(D)S series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction, but do not apply to the location with explosion-proof requirements.

Features Stainless steel motor case for beauty and endurability Open impeller for easier passage of suspended solid The stainless steel shaft extension, carbide double side mechanical sealing Optional Available on Request

Other voltage or frequency is 60Hz

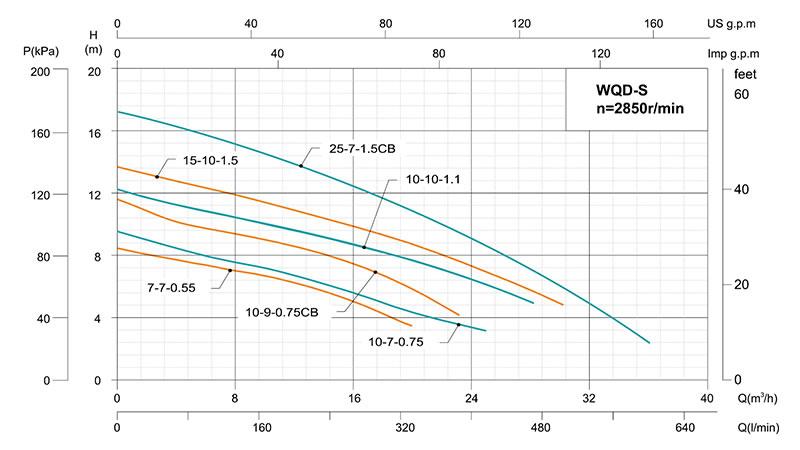

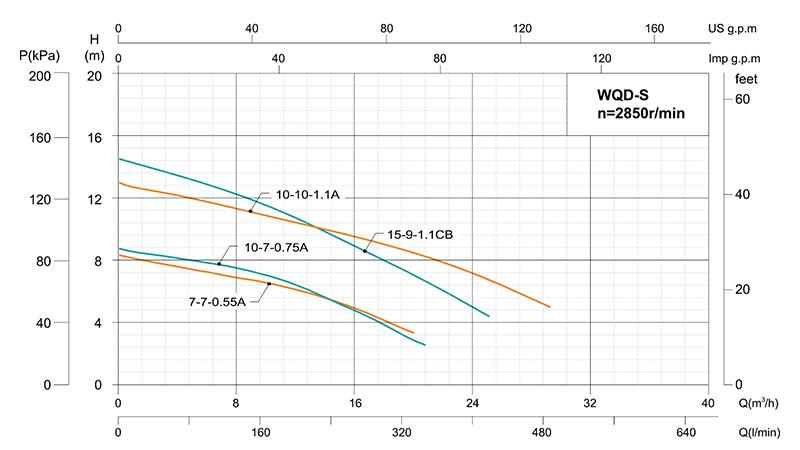

Performance Curve
