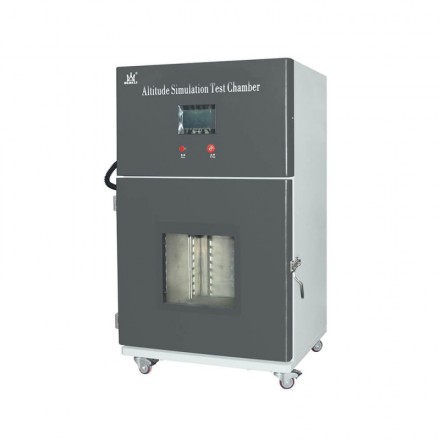

Altitude Simulation Test Chamber

Price: Negotiable
Min.Order: 1
Supply 902
Delivery: Shipment within 1 days since the date of payment
Address:
Valid until: Never Expire
Updated on: 2024-01-04 10:50
Views: 709

100N Howard St Ste R, Spokane, Wa 99201,United States

Test requirement

IEC 62133-2017UL 1642UN 38.3

Performance parameters

ModelBE-8104
StructureAll-in-one?structure, door with?explosion-proof?lock?and?explosion-proof chain
Temperature RangeRoom temperature
Display?ModePLC touch screen display (7-inch touch screen) + remote control
UnitKpa
Internal Chamber DimensionW600xD600xH600 mm
External Chamber DimensionW940xD780xH1620 mm
Internal?Chamber?MaterialReinforced steel + stainless steel (thickness?6.0mm)
External?Chamber?MaterialSECC steel plate,?Fine powder paint?coating?(thickness 1.5mm)
Timing?Range99H 59M 59S
Observation Window390 X 360mm(20mm thick tempered glass with explosion-proof film)
Air?PressureNormal pressure ~5Kpa (Adjustable)
Controlling?ModePLC touch screen display + remote control
Power?SupplyAC 220V?/?50HZ?/ 1KW
USB?InterfaceWith USB interface,?the?test data?can be?output
OptionsVideo surveillance system, terminal device
